Gigabyte GA-B250-HD3P - Scheda prodotto

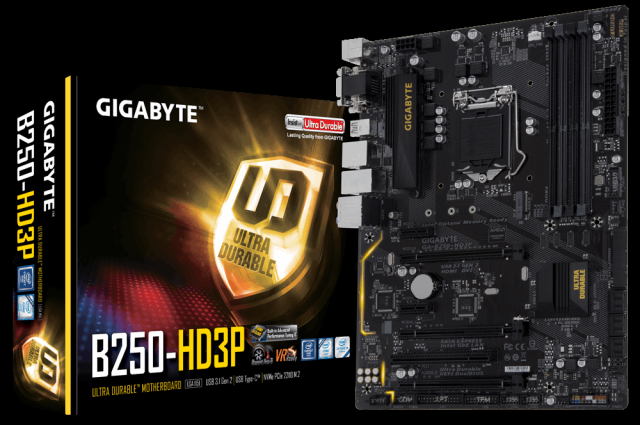

Gigabyte GA-B250-HD3P

Gigabyte GA-B250-HD3P
Ingrandisci immagine
B250 4xDDR4 2400Mhz HDMI DVI VGA M.2 6xUSB3.1 GA-B250-HD3P
Codice prodotto: GIG328

Prezzo: € 76,76 +IVA
Disponibilità: 1

Descrizione prodotto

CPU

Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset

Intel® B250 Express Chipset

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400* / 2133 MHz memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor- Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio

Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
* The PCIEX4_1 slot shares bandwidth with the SATA Express connector and the PCIEX1_2 slot. When the SATA Express connector is populated, the PCIEX4_1 slot operates at up to x2 mode. When the PCIEX1_2 slot is populated, the PCIEX4_1 slot operates at up to x1 mode.
* The PCIEX4_2 slot shares bandwidth with the M.2 connector. When the M.2 connector is populated, the PCIEX4_2 slot becomes unavailable.
2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x PCI slot

Storage Interface
Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
1 x SATA Express connector
* The SATA Express connector is not compatible with regular SATA devices.
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16, PCIEX4_1)

USB
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:

1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for 3TB+ Unlock
Support for Q-Flash
Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)
Intel® Optane™ Memory Ready
cFosSpeed

Operating System

Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

ATX Form Factor; 30.5cm x 22.5cm

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
