Asrock DeskMini H470 Series - Scheda prodotto

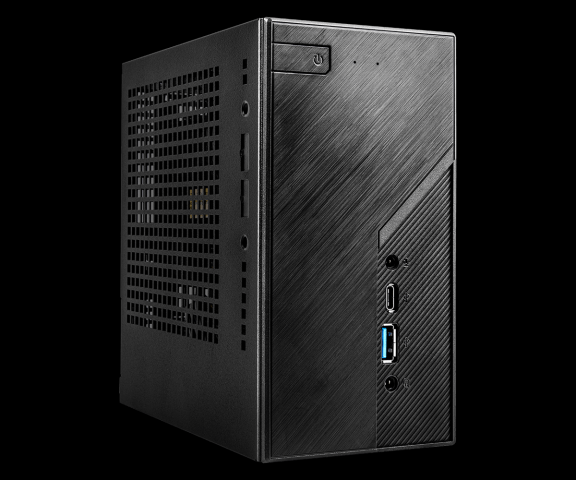

Asrock DeskMini H470 Series

Asrock DeskMini H470 Series
Ingrandisci immagine
CPU max 65w
Codice prodotto: ASR841

Prezzo: € 159,90 +IVA
Disponibilità: 0

Descrizione prodotto

CPU
- Supports Intel® 10th Gen LGA1200 Processors (Max. TDP 65W)
Cooler
- Supports Intel® CPU Cooler (Max. Height ≦ 46mm)
Memory
- Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)
Chipset
- Intel® H470
Graphics
- HDMI(4K@30Hz)
- DisplayPort1.4
- DisplayPort 1.4 (with USB Type-C Alt Mode)
- D-Sub

*Supports up to 3 displays simultaneously
Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (Realtek ALC233)
Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen2 Type-A
Rear USB
- 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A

*Rear side supports USB Type-C Alt Mode
Storage
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

*Supports Intel® Optane Technology
Supports NVMe SSD as boot disks
LAN
- Gigabit LAN (Intel® I219V)
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
