Asrock NUC BOX-1115G4 - Scheda prodotto

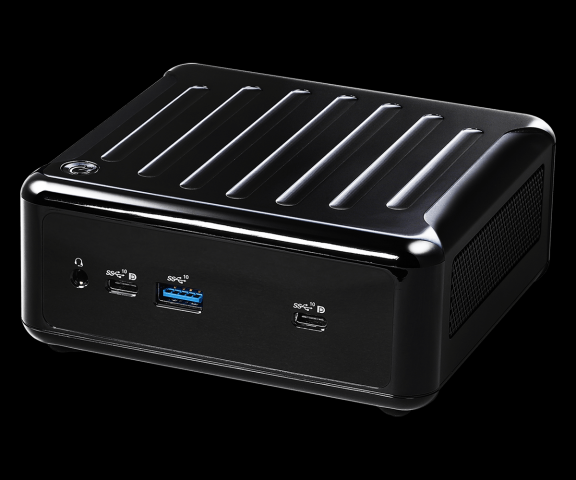

Asrock NUC BOX-1115G4

Asrock NUC BOX-1115G4
Ingrandisci immagine
Codice prodotto: ASR861

Prezzo: € 319,00 +IVA
Disponibilità: 0

Descrizione prodotto

CPU I3-1115G4, DC, Max Speed up to 4.1GHz
Chipset MCP
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)
Expansion Slot
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
WLAN 1 x Intel® Wi-Fi 6 AX200 module
Audio
Interface Realtek ALC233, High Definition Audio.
Ethernet
Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45
Front I/O
USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output)

Audio 1 (headphone & microphone jack)
Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.4
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1
Storage
M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD

SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 19V/90W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Mechanical
Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg
Others
OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Longivity Support No
Accessories
Gift Package 2 x SCREW M2*2,D=5 (13G020302034AK)
1 x NUT M2 H=3.35mm (13G020271010AK)
1 x AC PWR CORD (14G110000212AK)
1 x NUC BOX-TGL SERIES QIG (15G06M098000AI)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
