Asus PRIME X299-Deluxe II - Scheda prodotto

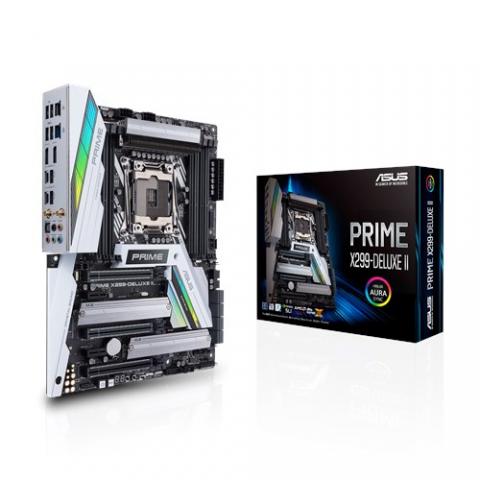

Asus PRIME X299-Deluxe II

Asus PRIME X299-Deluxe II
Ingrandisci immagine
90MB0ZB0-M0EAY0 su ord.
Codice prodotto: ASU811

Prezzo: € 459,40 +IVA
Disponibilità: 0

Descrizione prodotto

CPU
Intel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
* Refer to www.asus.com for CPU support list
Chipset
Intel® X299
Memory
Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 *1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
1 x PCIe 3.0/2.0 x16 (x2 mode) *2
2 x PCIe 3.0/2.0 x1 *1
Storage
Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)*1
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Core™ X-series Processors (6-core above) :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports
Intel® Optane™ Memory Ready
LAN
Aquantia AQC111C 5G LAN
Intel® I219V, 1 x Gigabit LAN
ASUS Turbo LAN Utility
ASUS LAN Guard
Wireless Data Network
Intel® Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth
Bluetooth® 5.0
Audio
Realtek® S1220A 8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS Headphone:X
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports
Intel® Thunderbolt™ 3 Controller :
2 x USB 3.1 Gen 2 port(s) (USB Type-CTM)
ASMedia® USB 3.1 Gen 2 controller : *1
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel® X299 Chipset :
5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
Intel® X299 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 1 Hub :
3 x USB 3.1 Gen 1 port(s) (3 at back panel, )
Special Features
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
2 ” LiveDash
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK! II
- AI Suite 3
- Ai Charger
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN
- Pre- mounted I/O shield
- ASUS NODE : hardware control interface
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
DIY Friendly Design
- Procool
- SafeSlot
Q-Installer
- Auto download driver and software. Friendly for first PC builder.
Back I/O Ports
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
1 x AQC-111C 5G LAN port
Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Node Connector(s)
1 x USB BIOS Flashback button(s)
1 x USB 3.1 Gen 2 front panel connector
1 x Q-Code
Accessories
User's manual
1 x Vertical M.2 bracket set
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x DisplayPort cable
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x CPU Fan Holder
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
* 1. PCIEX1_1 shares bandwidth with USB 3.1 Gen 2 front panel connector(U31G2_E1). It is disabled by default.
PCIEX1_2 shares bandwidth with SATA6G_7.
* 2. SATA6G_5 & SATA6G_6 shares bandwidth with PCIEX16_3 when using 28-lane CPU.

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.

Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model . Please refer to the specification page
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
