Asus Prime H570-Plus - Scheda prodotto

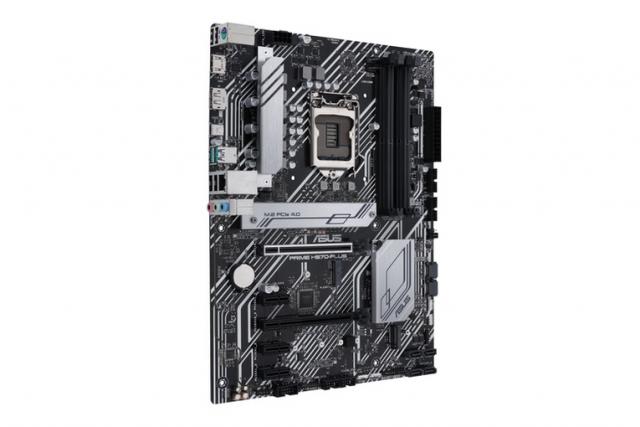

Asus Prime H570-Plus

Asus Prime H570-Plus
Ingrandisci immagine
Codice prodotto: ASU862

Prezzo: € 122,90119,21 +IVA
Disponibilità: 1

Descrizione prodotto

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

Chipset
Intel® H570 Chipset
Memory

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

ASUS OptiMem


Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.


Graphics
1 x DisplayPort 1.4**
1 x HDMI 1.4/2.0***

Expansion Slots

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Intel® H570 Chipset

1 x PCIe 3.0 x16 slot (max. at x4 mode)*

3 x PCIe 3.0 x1 slots
Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

-Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® H570 Chipset

- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)*

- 6 x SATA 6Gb/s ports

Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

Ethernet
1 x Intel® I219-V 1Gb Ethernet

ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)
USB
Rear USB:Total 7 ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 2 port (1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

Front USB:Total 8 ports

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

Back Panel I/O Ports

1 x DP port

1 x HDMI port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 2 port (1 x USB Type-C®)
Intrernal I/O Connectors

Fan and cooling-related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x 14-1 pin SPI TPM header

1X M.2 slot (Key E)

1 x Thunderbolt 4 header
Special Features

ASUS 5X PROTECTION III

- ASUS DIGI+VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design:

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box Headers

AURA SYNC

- AURA RGB headers

- Addressable Gen 2 RGB headers
Software Features

ASUS Exclusive Software:

Armoury Crate

AI Suite 3

-Performance And Power Saving Utility

TurboV EVO

Digi+ VRM

EPU

Fan Xpert 2+

- EZ update

AI Charger

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
BIOS
194Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Supporting DVD

Documentation

1 x User's manual


Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 23.4cm
