Asus Prime X299 Edition 30 - Scheda prodotto

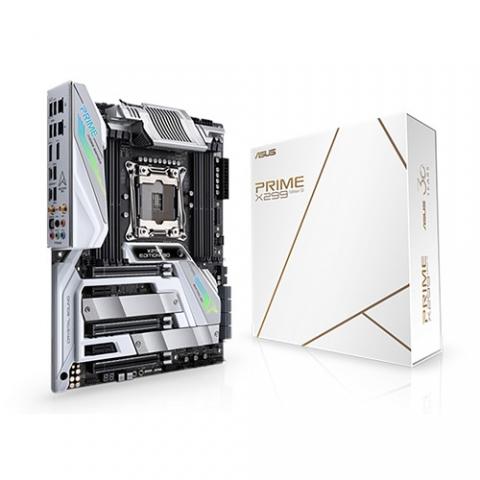

Asus Prime X299 Edition 30

Asus Prime X299 Edition 30
Ingrandisci immagine
90MB1190-M0EAY0 su ord.
Codice prodotto: ASU822

Prezzo: € 592,50 +IVA
Disponibilità: 0

Descrizione prodotto

CPU
Intel® Socket 2066 Core™ X-Series Processors
Optimized for Intel® Core™ X-Series 10000 Processor Family
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
* Refer to www.asus.com for CPU support list
Chipset
Intel® X299
Memory
(Intel® Core™ i9 10000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI® Technology
Supports NVIDIA® 3-Way SLI® Technology
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
48-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 *1
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 *1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *2
2 x PCIe 3.0/2.0 x1 *1
Storage
Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
8 x SATA 6Gb/s port(s)*5
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
(Intel® Core™ i9 10000 X-Series CPU) :
2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
Support Raid 0, 1, 5, 10
Intel® Virtual RAID on CPU(VROC)
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
Support Raid 0, 1, 5, 10
Intel® Virtual RAID on CPU(VROC)
Intel® Optane™ Memory Ready *6
LAN
Aquantia AQC111C 5G LAN
Intel® I219V, 1 x Gigabit LAN
ASUS Turbo LAN Utility
ASUS LAN Guard
Wireless Data Network
Intel® Wi-Fi 6 AX200
Wi-Fi 802.11 ax, Bluetooth® 5.0
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth
Bluetooth® 5.0
Audio
Realtek® S1220A 8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS X®:Ultra
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports
Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-CTM)
ASMedia® USB 3.2 Gen 2 controller : *1
1 x USB 3.2 Gen 2 front panel connector port(s)
GL852G USB Hub :
4 x USB 2.0 port(s)
Intel® X299 Chipset :
5 x USB 3.2 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
Intel® X299 Chipset :
2 x USB 2.0 port(s) (2 at back panel, )
ASMedia® USB 3.2 Gen 1 Hub :
3 x USB 3.2 Gen 1 port(s) (3 at back panel, )
Special Features
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AI Overclocking
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
2 ” LiveDash
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- BIOS Flashback® Button
- Clear CMOS Button
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- ASUS Fan Xpert 4
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Intel® Virtual RAID on CPU (VROC) ready
DIY Friendly Design
- ProCool II
- SafeSlot
Back I/O Ports
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS Flashback®)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
1 x AQC-111C 5G LAN port
Internal I/O Ports
2 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x System panel(s) (Q-Connector)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Power-on button(s)
1 x Clear CMOS button(s)
1 x Node Connector(s)
1 x USB BIOS Flashback® button(s)
1 x USB 3.2 Gen 2 front panel connector
1 x Q-Code
1 x FlexKey button
Accessories
User's manual
1 x Vertical M.2 bracket set
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x DisplayPort cable
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
Smart Control Console
1 x Smart Control Console
2 x micro USB 2.0 cables for Smart Console Console
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
* 1. PCIEX1_1 shares bandwidth with USB 3.2 Gen 2 front panel connector(U31G2_E1). It is disabled by default.
PCIEX1_2 shares bandwidth with SATA6G_7.
* 2. PCIeX16_3 will be disabled when using 28-lane CPU.
* 3. The M.2_2 socket shares bandwidth with SATA6G_1 port when using M.2 SATA devices.
* 4. The M.2_1 PCIe mode source is from X299 Chipset when using 44 and 28-lane CPU.
* 5. The SATA6G_7 shares bandwidth with PCIeX1_2.
* 6. The M.2 PCIE mode source from X299 Chipset supports Intel® Optane Memory

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.

Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model . Please refer to the specification page
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
