Asus Prime Z690-A - Scheda prodotto

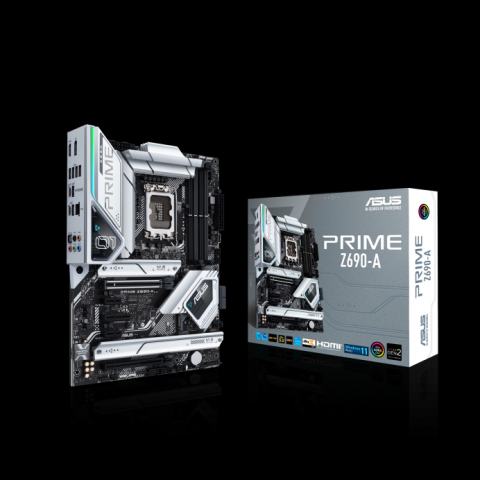

Asus Prime Z690-A

Asus Prime Z690-A
Ingrandisci immagine
90MB18L0-M0EAY0
Codice prodotto: ASU866

Prezzo: € 267,90 +IVA
Disponibilità: 0

Descrizione prodotto

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset
Z690
Memory

4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics

1 x DisplayPort**

1 x HDMI® port***

Expansion Slots

Intel®12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots

Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel®12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel®12th Gen processors support PCIe 4.0 x4 mode.

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
USB
Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header
Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box headers

- Clear CMOS button

- CPU socket lever protector

- ProCool

- Pre-mounted I/O shield

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 header(s)
Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

AI Suite 3

-Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

ASUS CPU-Z

DTS:X® Ultra

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package(s)

1 x Q-connector

1 x M.2 Q-Latch package(s)

Installation Media

1 x Support DVD

Documentation

1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
30.5cm x 24.4cm
HDMI
