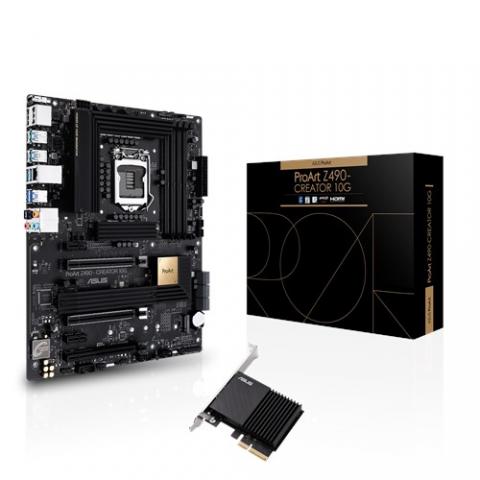

| Ingrandisci immagine |
Prezzo: € 294,50 +IVA
Disponibilità: 0
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z490
Memoria
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Thunderbolt
2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards' resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12 Thunderbolt devices
Up to 5V/3A, 15W charging support
Grafica
Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Supporto Multi-GPU
Supports AMD 3-Way CrossFireX™ Technology
Slot di Espansione
Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode) *2
2 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Intel® I225-V 2.5Gb Ethernet
Wireless Data Network
M.2 slot only (Key E) (Support CNVI & PCIe interface)*
*Wi-Fi module is sold separately.
Audio
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Porte USB
Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C®)
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(4 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7 )
1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)
Caratteristiche Speciali
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
- Procool Power connector design
AI Overclocking
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
ASUS SafeSlot - Protect your graphics card Investment
ASUS Optimem II：
- Optimem (Improved DDR4 stability)
AURA :
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- Crystal Sound 3
- PC Cleaner
- Armoury Crate
- OptiMem II
- ASUS EZ Flash 3
ASUS Quiet Thermal Solution :
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
ASUS Control Center Express (ACC Express) IT management software supported
Software Features
ASUS Exclusive Software
ProArt Creator Hub
CreationFirst
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 4
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Operating System Support
Windows® 10 64-bit
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool
- SafeSlot
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header(s)
- Addressable Gen 2 RGB header
Porte I/O Posteriori
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
I/O Interne
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x COM port header
Accessori
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
User manual
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Gestibilità
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Dimensioni Scheda
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Note
*1 Support PCIe bifurcation for RAID on CPU function.
*2 PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 will have no output.
*3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
*4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled.
*5 Please refer to the user manual for more details about DisplayPort input and output settings
