| Ingrandisci immagine |
Prezzo: € 555,90 +IVA
Disponibilità: 0
Chipset
Z690
Memoria
Max Memory Size: AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
Dual Channel Memory Architecture
OptiMem III
Grafica
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
Storage
Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 & SATA modes)
M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 5000 G-Series. 4000 G-Series, 2000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)
M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode)
AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes)
AMD X570 chipset
DIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
1 x Marvell® AQtion AQC113CS 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Intel® Wi-Fi 6E
Porte USB
Rear USB: Total 11 ports
Front USB: Total 9 ports
Audio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover"
Caratteristiche Speciali
Extreme OC Kit
- FlexKey button
- LN2 Mode
- Probelt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- ROG AURA sync backplate
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Dual BIOS
OLED 2"
ASUS HYDRANODE
- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)
- 2 x USB 2.0 port support* (USB_EP1, USB_EP3)
Porte I/O interne
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card/ PD 3.0 connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology)
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
6 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
2 x RSVD header
1 x V_Latch
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Sistema Operativo
Windows® 11 ready
Windows® 10 64bit
Formato Dimensioni
ATX
30.5cm x 24.4cm

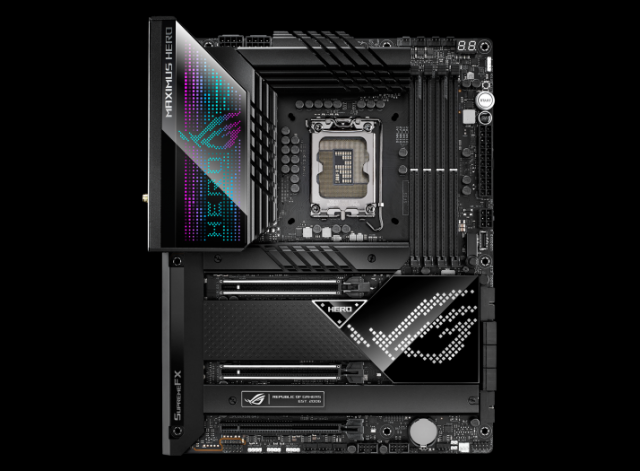

ROG MAXIMUS Z690 HERO
