Asus WS C246 Pro - Scheda prodotto

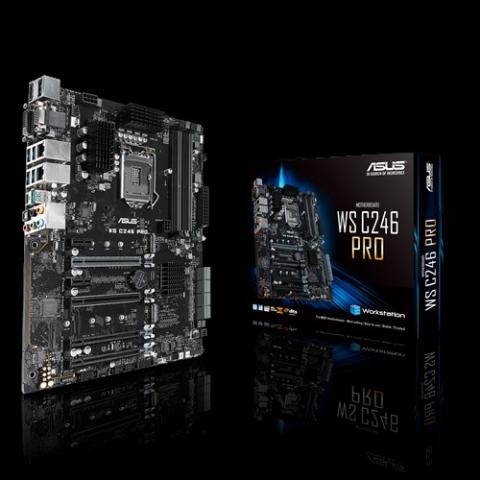

Asus WS C246 Pro

Asus WS C246 Pro
Ingrandisci immagine
90SW00G0-M0EAY0
Codice prodotto: ASU818

Prezzo: € 229,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor / System Bus
1 x Socket LGA1151
Intel® Xeon® processor E-2100 family
Intel® Pentium™ processors
Intel® Celeron™ processors
Intel® Core™ i7/i5/i3 processors
Core Logic
Intel® C246 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM/Maximum up to 64GB UDIMM
Memory Type :
Dual Channel DDR4 2666/2400 /2133
Memory Size :
16GB, 8GB
* Refer to support page for more information
Expansion Slots
Total Slot : 6
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 + X8 Link)
Slot Location 3 : PCI-E x16 (Gen3 X8 Link)
Slot Location 4 : PCI-E x1 (Gen2 X1 Link)
Slot Location 5 : PCI-E x16 (Gen3 X4 Link)
Slot Location 6 : PCI-E x4 (Gen1 X4 Link)
Form Factor
ATX (12"x9.6", 305mm x 244mm)
Storage
SATA Controller :
Intel® C246 Chipset
8 x SATA3 6Gb/s ports

SAS Controller :
Networking
1 x Intel® I210AT
1 x i219-LM
On Board I/O
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x M.2 Connector , NGFF Type : 22110/2280/2260/2242
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector)
1 x COM port
1 x USB BIOS Flashback Button
1 x S/PDIF Out (Optical)
1 x COM port
Back I/O Ports
2 x USB 3.1 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.0 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports (5+1 Audio jacks)
Management Solution
WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE
Accessories
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
2 x M.2 screw

Bulk Pack (10-in-1)
1 x Support CD
10 x I/O shield
80 x SATA 6G cables
10 x Com port cable
1 x User manual
1 x Quick start guide
20 x M.2 screw
Monitoring
CPU Temperature
Fan RPM
