Prezzo: € 75,90 +IVA
Disponibilità: 0

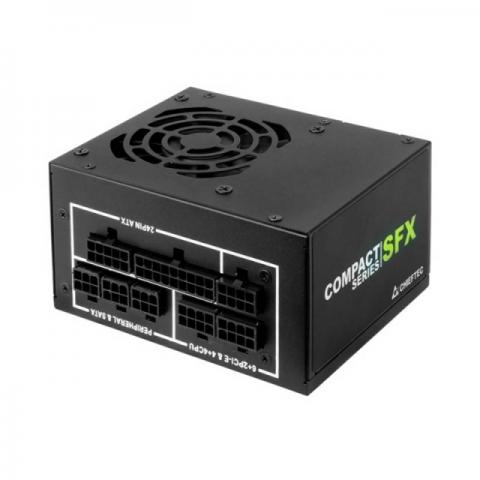

Model COMPACT 650W
Article no. CSN-650C
EAN code 4710713235779
Weight (without/with package) 1.6 kg / 1.98 kg
AC Input 100 - 240V / 8A
Frequency 47 - 63Hz
+5V 15A
+3,3V 18A
+5V & +3,3V combined 90W
+12V1 54A
+12V2 -
+12V1, +12V2 combined 648W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 3,0AA / 15W
Maximum Power 650W
Connectors 20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX/FLOPPY 3/1
Cable length (mm) 20+4 PIN ATX 450
8 PIN EPS(4+4) 450
8 PIN PCIe (6+2) 2x450
SATA 2x 450/150/150
MOLEX/FLOPPY 450/150/150/150
Features ATX12V Version ATX 12V 2.3
Efficiency 80+Gold
Dimension (DxWxH) 100 mm x 125 mm x 64 mm
PFC Active PFC (0,9)
Fan 80mm silent fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
