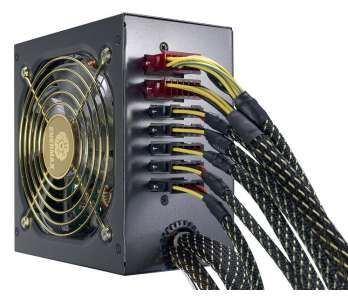

| Ingrandisci immagine |
Prezzo: € 107,50 +IVA
Disponibilità: 0
Caratteristiche tecniche
I/P
Voltage rating 100-240VAC Universal Input
Iin= 6.7A-3A with Active PFC
Frequency 50Hz-60Hz
Inrush current Repetitive ON/OFF cycling of t
O/P
DC
Voltage Ripple &
Noise Total
Reg. Output current rating
Min. / Max.
+3.3VV 50mV ±5% 0.1/20A
+5VV 50mV ±5% 0.1/20A
+12V1V 120mV ±5% 0.1/22A
+12V2V 120mV ±5% 0.5/22A
+12V3V 120mV ±5% 0A/22A
-12VVsb 120mV ±10% 0A/0.6A
5VsbVsb 50mV ±5% 0A/3A
Vsb mV
+3.3V & +5V Max 120W
TOTAL O/P 425W
Hold up time:
17ms at 115VAC or 230VAC full load
Over Power Protection
110% to 150% of Max Load
Efficiency
At 115VAC : 82 % at 20% load, 85% at 50% load, 83% at 100% load
At 230VAC : 84% at 20% load, 88% at 50% load, 86% at 100% load
Cooling
Single 10205 Axial Fan, 12cm termocontrolled, 2 ball bearing.
RPM : 450 - 1500 (+/-10%) @ 20°C ; 450 - 2000 (+/-10%) @ 40°C
Operation Temperature
0°C - 40°C
Storage Temperature
-40°C to 70 °C
Humidity
Operating : to 85% relative humidity,non condensing at 25°C Storage : to 95% relative humidity,non condensing at 50°C
MTBF
Greater than 100K hours at 70% of full rated load
EMC
CE, FCC, MIC
Over Voltage Protection
+5V : 5.5V to 7.0 V +3.3V : 3.76V to 4.6 V +12V1 & +12V2 : 13.4 to 15.6 V
Safety
UL, cUL, TÜV, BSMI, CB, CCC, GOST
Dimension
W150*H86*D140(mm)
Cablaggio
Output cables
NATIVE CABLE: 20+4Pin for Motherboard; 4+4Pin CPU, FAN RPM
MODULAR CABLE: 1XEMC011(3XSATA) ; 1XEMC012(3X4Pin Molex) ; 1xEMC013(3X4Pin Molex + 1FDD) ; 1X EMC014 (2X6+2Pin PCI-EXPRESS 2.0)
Cable Length
NATIVE CABLE: Mainboard 20/24 pin(40cm), 4+4 pin CPU(40cm), FM(55cm)
MODULAR CABLE: 2XEMC004 PCI-EXPRESS(45cm), 3XEMC003 ETERNITY CABLE (2X4pin MOLEX+2XSATA)(45/50/60/65cm), 1XEMC005 ETERNITY (2X4pin MOLEX + 2XSATA+FDD)(45/50/60/65/90cm)
