| Ingrandisci immagine |
Prezzo: € 107,50 +IVA
Disponibilità: 0

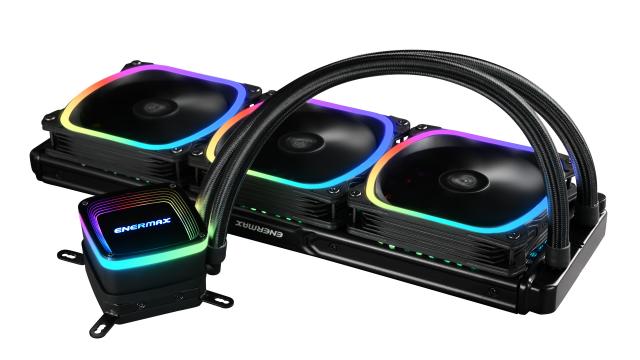

ELC-AQF360-SQA
Intel® compatible Sockets LGA 1200, LGA 115x, 1366, 2011(-3) Square ILM, 2066
AMD® compatible Sockets FM1, FM2(+), AM2(+), AM3(+), AM4
Cold Plate Material Nickel plated copper
Weight without Fan –
Thickness including Fan 53.7mm
Thermal Design Power (TDP) 300W 360W 380W
Thermal Grease Dow Corning® TC-5121 2g
RGB Controller
RGB Sync. Connector 3 pin ARGB (5V/Data/-/GND)
RGB Sync. Compatibility Asus, Asrock, MSI, Gigabyte (with adaptor), Razer Chroma (with Asrock and MSI mainboards)
Lighting Modes Racing-Rainbow (Default), Breathing-Rainbow, Flash-Rainbow, Overlaying-Rainbow, Flow-Rainbow, Colors auto-run (8 colors), Ripple auto-run (8 colors), Overlaying-RED, Overlaying-GREEN, Overlaying-BLUE
Power Connector SATA Power
Max. Current 3A
Pump
Bearing Type Ceramic bearing
MTBF 50,000h
Motor Speed 3.100RPM
Rated Voltage Pump 12V
Rated Current Pump 0.7A
Rated Voltage RGB LED 5V
Rated Current RGB LED 0.42A
Pump Power Connector 3 pin (GND/12V/Tacho)
Radiator
Dimensions 154 x 120 x 27 mm 274 x 120 x 27 mm 394 x 120 x 27 mm
Material Aluminium
Tubes
Length 400mm
Material Rubber (Polyamide)
Fan
Fan Model SquA RGB
LED Type WS2812B addressable RGB
Bearing Type –
MTBF 100,000h
Fan Dimensions 120 x 120 x 26mm
Fan Speed 500 – 2,000RPM
Rated Voltage Fans 12V
Rated Current Fans 0.38 A 0.76 A (2x 0.38A) 1.14 A (3x 0.38A)
Rated Voltage RGB LEDs 5V
Rated Current RGB LEDs 0.68A 1.36A (2x 0.68 A) 2.04A (3x 0.68 A)
Fan Power Connector 4 pin PWM (GND/12V/Tacho/PWM)
Quantity 1 2 3
Noise Level 17 ~ 32.6 dBA
Air Flow 39 ~ 79.8 CFM
Static Pressure 0.67 ~ 3.6 mm-H2O
Included in the delivery Liquid cooler, 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide Liquid cooler, 2x 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), PWM fan Y-cable, molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide Liquid cooler, 3x 12cm SquA RGB fans, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), molex adapter, RGB control box, RGB sync cable, SATA RGB controller power cable, RGB Gigabyte cable, 24 pin power adaptor, installation guide
Dealer Information
ELC-AQF120-SQA ELC-AQF240-SQA
Product Dimensions (D x W x H) 154 x 120 x 53.7mm 274 x 120 x 53.7mm
Product Weight 0.90 kgs 1.05 kgs
Product Box Dimensions (D x W x H) 267 x 215 x 137mm 330 x 207 x 138mm
Product Box Gross Weight 1.53 kgs 1.89 kgs
Master Carton Dimensions (D x W x H) 552 x 300 x 460mm 435 x 355 x 440mm
Master Carton Gross Weight 13.27 kgs 12.59 kgs
Master Carton Pieces 8 6
EAN-Code 4713157723871 4713157723888
ELC-AQF360-SQA
Product Dimensions 394 x 120 x 27mm
Product Weight –
Product Box Dimensions 448 x 205 x 137mm
Product Box Gross Weight 2.34kg
Master Carton Dimensions 467 x 292 x 440mm
Master Carton Gross Weight 10.3kg
Master Carton Pieces 4
EAN-Code 4713157724496
