| Ingrandisci immagine |
Prezzo: € 79,90 +IVA
Disponibilità: 0
3.5" HDD/2.5" SSD positions
3
2.5" dedicated SSD unit positions
2 (fits SSDs up to 17 mm thick)
Expansion slots
7
Front ports
2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
Total fan mounts
9
Front fan
3x 120/140 mm (included is 1 Fractal Design Dynamic GP-14 fan, 1,000 RPM speed)
Top fan
3x 120/140 mm or 1x 180 mm with 165 mm hole spacing
Rear fan
1x 120/140 mm (included is 1 Fractal Design Dynamic GP-14 fan, 1,000 RPM speed)
Bottom fan
1x 120/140 mm
Side fan
1x 120/140 mm
Dust filters
Front fans, Bottom fans
Cable routing grommets
Yes
Fixed velcro straps
Yes
Captive thumbscrews
Both side panels
Left side panel
Industrial sound-dampened steel
Right side panel
Industrial sound-dampened steel
Compatibility
Power supply type
ATX
Motherboard compatibility
ATX, Micro ATX, Mini ITX
Front radiator
360, 280, 240, 140 or 120 mm
Top radiator
420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators)
Rear radiator
120/140 mm
Bottom radiator
120 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
PSU max length
180/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan
GPU max length
425 mm with front fans installed, without compromising HDD capacity or 450 mm without front fans installed directly in line with the GPU
CPU cooler max height
180 mm
Cable routing space
20-40 mm
Dimensions
Case dimensions (WxHxD)
233 x 451 x 520 mm
Case dimensions - with feet/screws/protrusions
233 x 465 x 533 mm
Net weight
9.1 kg
Package dimensions (WxHxD)
322 x 615 x 535 mm
Package weight
10.8 kg
Volume
54.6 liters
Other
Package contents

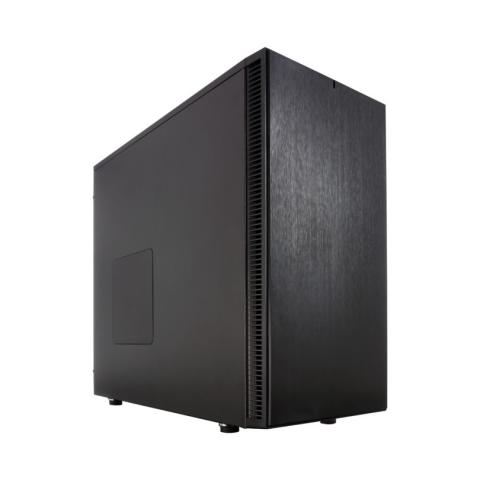

Define S computer case, User manual, Accessory box
EAN
7350041083443
UPC
817301013444
Product code
FD-CA-DEF-S-BK
Additional information
Available for System Integrators
