Gigabyte X399 AORUS Xtreme - Scheda prodotto

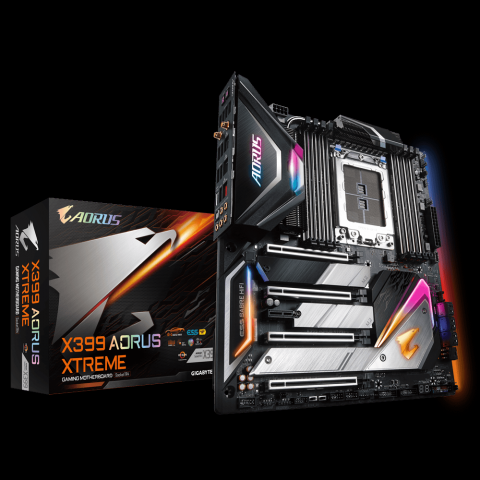

Gigabyte X399 AORUS Xtreme

Gigabyte X399 AORUS Xtreme
Ingrandisci immagine
X399 AORUS XTREME 8xDDR4 4400Mhz 3xM.2 PCIe USB3.1 Type-C Gen.2 su ord.
Codice prodotto: GIG368

Prezzo: € 390,00 +IVA
Disponibilità: 0

Descrizione prodotto

CPU
SocketTR4:
AMD Ryzen™ Threadripper™ processor
(Please refer "CPU Support List" for more information.)
Chipset
AMD X399
Memory
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory
4 channel memory architecture
Support for DDR4 3600+*(O.C.) / 3466+(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
* Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed.
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Audio
Realtek® ALC1220-VB codec
ESS9118EQ chip
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Intel® GbE LAN chips (10/100/1000 Mbit)(LAN1)(LAN2)
1 x Aquantia GbE LAN chip(10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit)(LAN)
Wireless Communication module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
1 x PCI Express x1 slot
(The PCIEX1_1 slot conforms to PCI Express 2.0 standard.)
Storage Interface
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
USB
CPU:
8 x USB 3.1 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
4 x USB 3.1 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x OC PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x system fan/water cooling pump headers
2 x digital(addressable) LED strip headers
2 x digital(addressable) LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x BIOS switch
1 x DualBIOS™ switch
2 x temperature sensor headers
1 x Clear CMOS jumper
Back Panel Connectors
1 x power/reset button
1 x Clear CMOS button
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
8 x USB 3.1 Gen 1 ports
3 x RJ-45 ports
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
Smart Survey
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)
Operating System
Support for Windows 10 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 26.9cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
