Gigabyte Z590I Vision D - Scheda prodotto

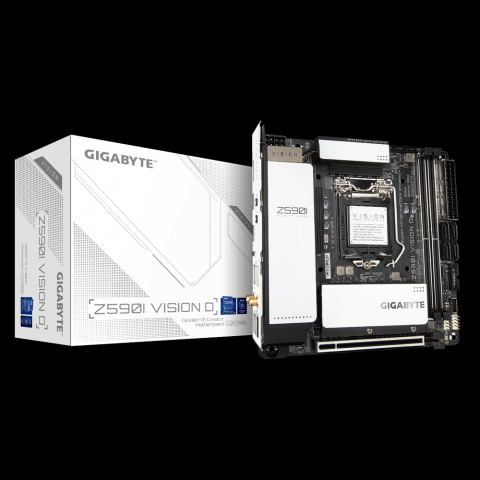

Gigabyte Z590I Vision D

Gigabyte Z590I Vision D
Ingrandisci immagine
Codice prodotto: GIG450

Prezzo: € 266,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processore
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z590 Express Chipset
Memoria
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Architettura di memoria a doppio canale
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supporta le memorie dotate di Profilo XMP
((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
Grafica integrata
Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller
2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC4080 codec
Support for DTS:X® Ultra
Audio ad alta definizione
2-channel
LAN
Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Slot di Espansione
1 x Slot PCI Express x16, funzionante a x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
Interfaccia di storage
CPU
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.
Chipset
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
4 Connessioni SATA 6Gb/s
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USB
Chipset+USB 2.0 Hub
2 x USB 2.0/1.1 ports available through the internal USB headers
Chipset
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+Intel® Thunderbolt™ 4 Controller
2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Connettori Interni I/O
1 Connettore di Alimentazione ATX a 24-pin
1 Connettore di Alimentazione ATX ad 8-pin
1 Connettore per Ventola della CPU
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
4 Connessioni SATA 6Gb/s
2 x M.2 Socket 3 connectors
1 Connettore per Pannello Frontale
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Pannello Posteriore I/O
1 x DisplayPort In port
2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 Porta RJ-45
2 x SMA antenna connectors (2T2R)
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
Monitoraggio H/W
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@ BIOS ™
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Supporta il Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
Sistema Operativo
Support for Windows 10 64-bit
Caratteristiche Fisiche
Mini-ITX Form Factor; 17.0cm x 17.0cm
