Gigabyte Z590 Vision G - Scheda prodotto

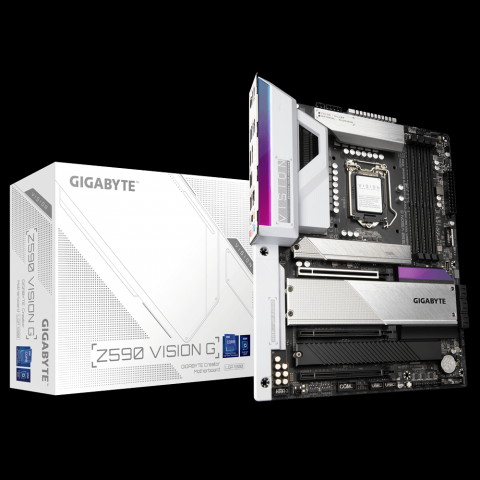

Gigabyte Z590 Vision G

Gigabyte Z590 Vision G
Ingrandisci immagine
Codice prodotto: GIG448

Prezzo: € 211,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processore
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z590 Express Chipset
Memoria
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Architettura di memoria a doppio canale
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supporta le memorie dotate di Profilo XMP
((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
Grafica integrata
Integrated Graphics Processor - Intel® HD Graphics support
1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz.
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.2 version and HDCP 2.3.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Supported graphics specifications may vary depending on CPU or graphics card used.)
Audio
Realtek® ALC4080 codec
Audio ad alta definizione
Audio a 2/4/5.1/7.1 canali
Supporta uscite S/PDIF
LAN
Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Slot di Espansione
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
* The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Interfaccia di storage
CPU
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
* Supported by 11th Generation processors only.
Chipset
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
Tecnologia Multi GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
USB
Chipset+USB 2.0 Hub
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub
4 x USB 3.2 Gen 1 ports on the back panel
Connettori Interni I/O
1 Connettore di Alimentazione ATX a 24-pin
1 Connettore di Alimentazione ATX ad 8-pin
1 x 4-pin ATX 12V power connector
1 Connettore per Ventola della CPU
1 x water cooling CPU fan header
4 Connessioni per ventole
2 x Addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 Connettore per Pannello Frontale
1 Connettore per uscite Audio Frontali
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x Connettori USB 2.0/1.1
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
La funzione TPM è opzionale in base alla regolamentazione dei vari stati
2 x Thunderbolt™ add-in card connectors
1 Porta seriale
1 x Clear CMOS jumper
1 x Q-Flash Plus button
1 x noise detection header
Pannello Posteriore I/O
2 x USB 2.0/1.1 ports
1 Connessione per Mouse e Tastiera PS/2
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 Porta HDMI
2 x USB 3.2 Gen 2 Type-A ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 Porta RJ-45
6 x audio jacks
I/O Controller
iTE® I/O Controller Chip
Monitoraggio H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@ BIOS ™
EasyTune
Fast Boot
Game Boost
Supporto alla tecnologia ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Supporta il Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
Sistema Operativo
Support for Windows 10 64-bit
Caratteristiche Fisiche
ATX Form Factor; 30.5cm x 24.4cm
