Intel NUC 11 Enthusiast Kit NUC11PHKi7C i7-1165G7 + RTX2060 - Scheda prodotto

Intel NUC 11 Enthusiast Kit NUC11PHKi7C i7-1165G7 + RTX2060

Intel NUC 11 Enthusiast Kit NUC11PHKi7C i7-1165G7 + RTX2060

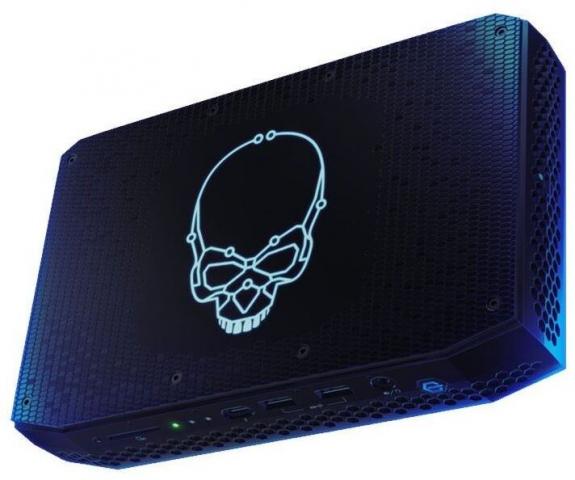

Ingrandisci immagine
NUC11PHKi7C + RTX2060 6GB
Codice prodotto: INT593

Prezzo: € 942,62 +IVA
Disponibilità: 0

Descrizione prodotto

Product Collection Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name Products formerly Phantom Canyon
Status Launched
Launch Date Q1'21
Supported Operating Systems Windows 10, 64-bit*
Board Number NUC11PHBi7
Board Form Factor UCFF (5.5" x 8")
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 2
Extended Life Program (XLP) No
Lithography 10 nm SuperFin
TDP 150 W
DC Input Voltage Supported 19.5 VDC
Processor Included Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 4
# of Threads 8
Max Turbo Frequency 4.70 GHz
Warranty Period 3 yrs
Use Conditions PC/Client/Tablet

Supplemental Information

Embedded Options Available No
Description Nvidia Geforce RTX 2060 graphics included.

Other features: Includes far-field quad array microphones, PC Stand for vertical operating orientation.

Memory & Storage

Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-3200 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 51.2 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No

Processor Graphics

Integrated Graphics ‡ Yes
Graphics Output 2x TBT4; HDMI 2.0a; mDP 1.4
# of Displays Supported ‡ 4
Discrete Graphics Nvidia Geforce RTX 2060

Expansion Options

PCI Express Revision Gen3
PCI Express Configurations ‡ Dual M.2 slots with PCIe x4 lanes
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 22x80; 22x80,110

I/O Specifications

# of USB Ports 10
USB Configuration 3x front (2x Type-A, 1x Type-C) and 5x rear USB 3.2 (4x Type-A, 1x Type-C); 2x USB 2.0 via internal headers.

USB Revision 2.0, 3.2 Gen2
USB 2.0 Configuration (External + Internal) 2
USB 3.0 Configuration (External + Internal) 8
Total # of SATA Ports 1
Max # of SATA 6.0 Gb/s Ports 1
Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN Intel® Ethernet Connection i225-LM
Integrated Wireless‡ Intel® Wi-Fi 6 AX201
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
S/PDIF Out Connector TOSLINK
# of Thunderbolt™ Ports 2x Thunderbolt™ 4

Advanced Technologies

Intel® Optane™ Memory Supported ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel vPro® Platform Eligibility ‡ No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Platform Trust Technology (Intel® PTT) Yes
