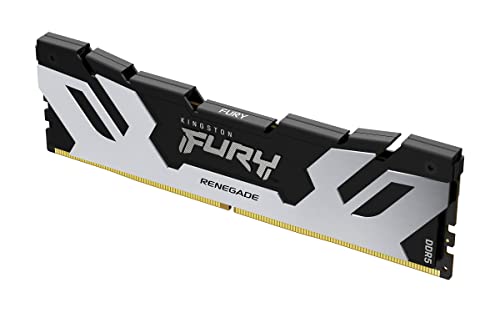

Kingston 16GB DDR5 6400Mhz Fury Renegade 1x16GB - Scheda prodotto

Kingston 16GB DDR5 6400Mhz Fury Renegade 1x16GB

Kingston 16GB DDR5 6400Mhz Fury Renegade 1x16GB
Ingrandisci immagine
KF564C32RS-16
Codice prodotto: KIN509

Prezzo: € 80,39 +IVA
Disponibilità: 2

Descrizione prodotto

DESCRIPTION
SPECIFICATIONS
KF564C32RS-16
16GB 2G x 64-Bit
DDR5-6400 CL32 288-Pin DIMM
Continued >>
FEATURES
Kingston FURY KF564C32RS-16 is a 2G x 64-bit (16GB)
DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-6400 at a
low latency timing of 32-39-39 at 1.4V. The SPDs are
programmed to JEDEC standard latency DDR5-4800 timing
of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact
fingers. The JEDEC standard electrical and mechanical
specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
40 cycles
48ns(min.)
295ns(min.)
32ns(min.)
94 V - 0
0o
C to +85o
C
-55o
C to +100o
C
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2: DDR5-6000 CL38-38-38 @1.35V
• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.54” (39.2mm), w/heatsink
