| Ingrandisci immagine |
Prezzo: € 134,90 +IVA
Disponibilità: 0
DESCRIPTION
SPECIFICATIONS
KF564C32RSAK2-32
32GB (16GB 2G x 64-Bit x 2 pcs.)
DDR5-6400 CL32 288-Pin DIMM Kit
Continued >>
FEATURES

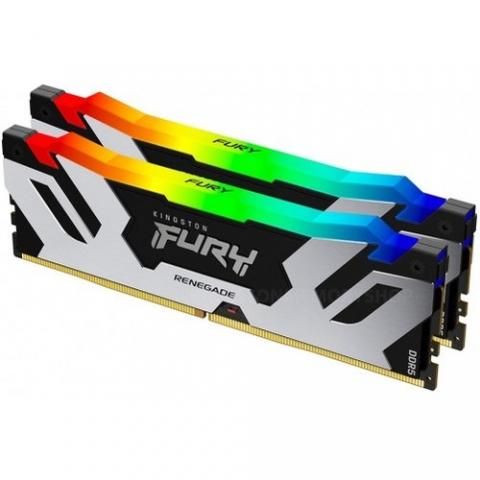

Kingston FURY KF564C32RSAK2-32 is a kit of two 2G x 64-bit
(16GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 2G x 8-bit FBGA components per
module. Each module kit supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each
module has been tested to run at DDR5-6400 at a low latency timing
of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC
standard latency DDR5-4800 timing of 40-39-39 at 1.1V.
Each 288-pin DIMM uses gold contact fingers. The JEDEC
standard electrical and mechanical specifications are as
follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
40 cycles
48ns(min.)
295ns(min.)
32ns(min.)
94 V - 0
0 o C to +85 o C
-55 o C to +100o C
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2: DDR5-6000 CL38-38-38 @1.35V
• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.73” (44.00mm), w/heatsink
