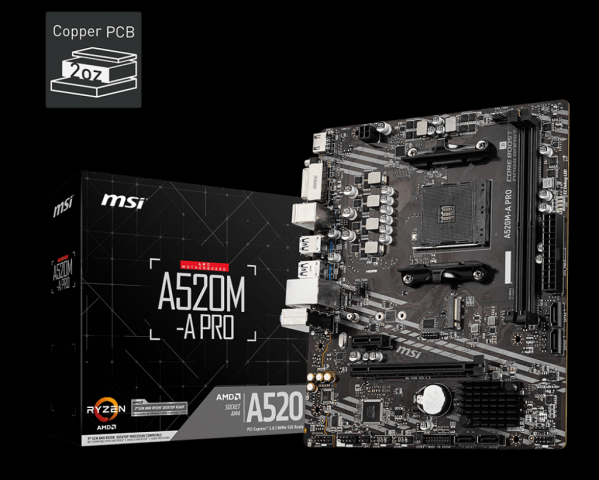

MSI A520M-A Pro - Scheda prodotto

MSI A520M-A Pro

MSI A520M-A Pro
Ingrandisci immagine
A520M-A PRO
Codice prodotto: MSI237

Prezzo: € 45,90 +IVA
Disponibilità: 5

Descrizione prodotto

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

See supported processors
Chipset

AMD A520 Chipset
Memory

2x DDR4 memory slots, support up to 64GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot

1x PCIe 3.0 x1 slot 1
1x PCIe x16 slot

The supported specification depends on installed processor.

Onboard Graphics

1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz12
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
Maximum shared memory of 16 GB

Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Storage
AMD A520 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio
Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8111H Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper

Back panel ports

LAN port
HDMI
DVI-D
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0 Ports
Audio Connectors

A520M-A Pro
Dimensions

Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)

MOUNTING

8 mounting holes
Box content
MSI A520M-A PRO package content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
