MSI B360M PRO-VH - Scheda prodotto

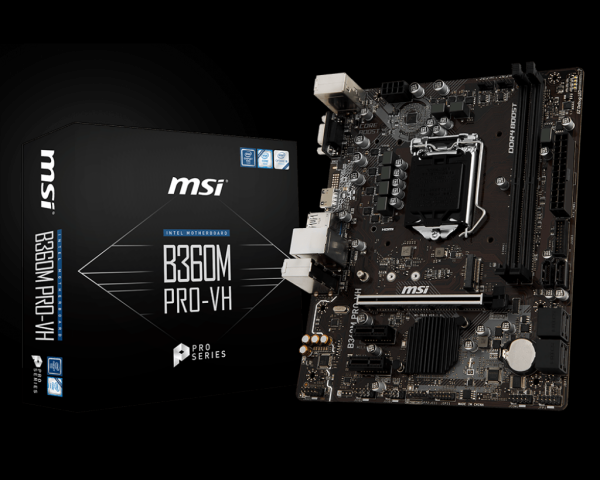

MSI B360M PRO-VH

MSI B360M PRO-VH
Ingrandisci immagine
7B53-001R EAN:4719072561567
Codice prodotto: MSI180

Prezzo: € 55,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors
Chipset

Intel® B360 Chipset
Memory

2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory
Slots

1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz

Storage
Intel® B360 Chipset

6 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready1

Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB
Intel® B360 Chipset

6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
Realtek® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1 x RTL8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
6 x SATA 6Gb/s connectors
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x Chassis Intrusion connector
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector

Back panel ports

PS/2 Combo Port
VGA Port
HDMI Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
USB 3.1 Gen1

MSI B360M PRO-VH back panel ports
Dimensions

8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
m-ATX Form Factor

Mounting

6 mounting holes
Box content
MSI B360M PRO-VH box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
