MSI B450M-A Pro MAX - Scheda prodotto

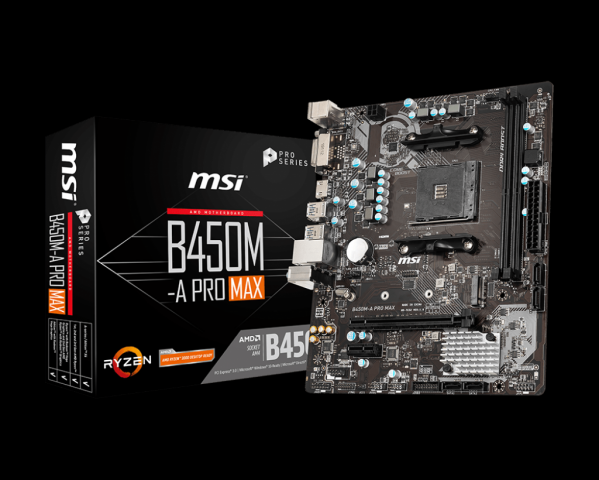

MSI B450M-A Pro MAX

MSI B450M-A Pro MAX
Ingrandisci immagine
Codice prodotto: MSI205

Prezzo: € 52,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

See supported processors
Chipset

AMD® B450 Chipset
Memory

2 x DDR4 memory slots, support up to 32GB
Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory

See supported memory
Slots

1 x PCIe 3.0 x16 slot
Supports x16 speed
1st, 2nd and 3rd Gen AMD Ryzen™
Supports x8 speed
Ryzen™ with Radeon™ Vega Graphics
2nd Gen AMD Ryzen™ with Radeon™ Graphics
A-series
Athlon™ X4
Supports x4 speed
AMD® Athlon™ with Radeon™ Vega Graphics
PCIe 2.0 x1 slot

Onboard Graphics

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2

Only support when using the processor with Graphicss
Maximum shared memory of 2048 MB

Storage
AMD® B450 Chipset

4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1x M.2 slot (Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s
1st, 2nd and 3rd Gen AMD Ryzen™
Ryzen™ with Radeon™ Vega Graphics
2nd Gen AMD Ryzen™ with Radeon™ Graphics
Supports PCIe 3.0 x2 and SATA 6Gb/s
AMD® Athlon™ with Radeon™ Vega Graphics
A-series
Athlon™ X4
Supports 2242/ 2260/ 2280/ 22110 storage devices

USB
AMD® B450 Chipset

6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper

Back panel ports

Mouse
DVI-D Port
USB 3.2 Gen1
LAN Port
Keyboard
HDMI Port
USB 2.0 Ports
HD Audio Connectors

MSI A320M-A PRO MAX back panel ports
Dimensions

9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
m-ATX Form Factor

Mounting

6 mounting holes
Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit

Box content
MSI B450-A PRO MAX box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
