MSI B450M PRO-M2 - Scheda prodotto

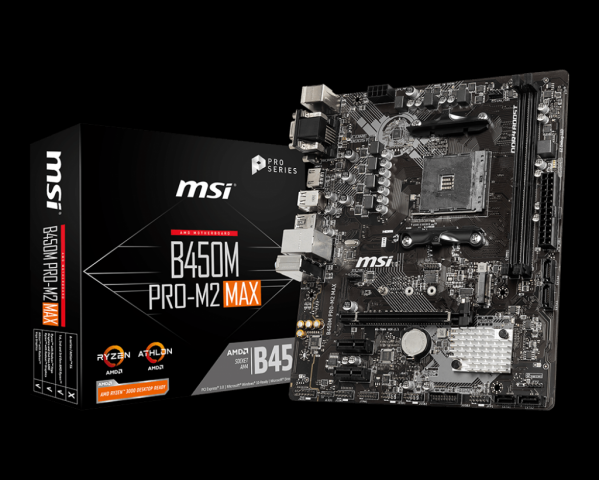

MSI B450M PRO-M2

MSI B450M PRO-M2
Ingrandisci immagine
7B84-005R EAN:4719072585624 2xDDR4 3466Mhz HDMI DVI VGA 1xM.2 PCIe+SATA USB3.0
Codice prodotto: MSI185

Prezzo: € 56,52 +IVA
Disponibilità: 2

Descrizione prodotto

Processor

Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

See supported processors
Chipset

AMD® B450 chipset
Memory

2 x DDR4 memory slots, support up to 32GB
Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory

See supported memory
Slots

1 x PCIe 3.0 x16 slot
Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
2 x PCIe 2.0 x1 slots

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz1

Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
Maximum shared memory of 2048 MB

Storage
AMD® B450 Chipset

4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

USB
AMD® B450 Chipset

2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® Processors

4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio
Realtek® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x LED strip connector
1x Clear CMOS jumper

Back panel ports

PS/2 Port
VGA Port
USB 3.1 Gen1 Port
LAN Port
HD Audio Connectors
USB 2.0
DVI-D Port
HDMI
USB 3.1 Gen1 Port

MSI A320M PRO-M2 back panel ports
Dimensions

9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
M-ATX Form Factor

Mounting

4 mounting holes
Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
