MSI B460M-A-PRO - Scheda prodotto

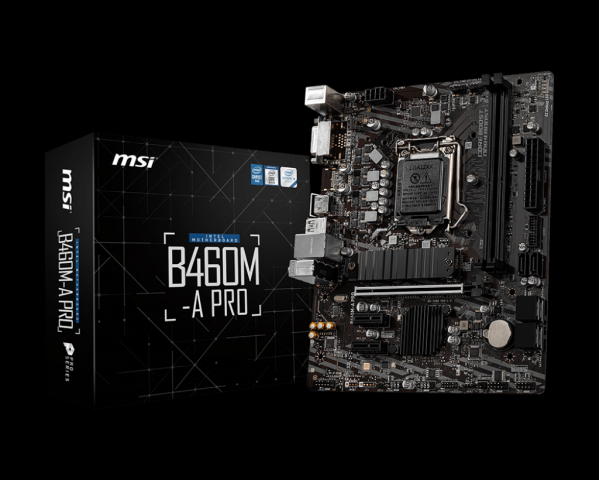

MSI B460M-A-PRO

Ingrandisci immagine

7C88-002R

Codice prodotto: MSI216

Prezzo: € 999,00 +IVA
Disponibilità: 0

Prodotti simili · Altri prodotti di MSI
Descrizione sul sito del produttore

Descrizione prodotto

CPU

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

Please go to www.intel.com for more compatibility information.
Onboard graphics output are disabled when using F SKU processors.

Chipset

Intel® B460 chipset
Memory

2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Please refer www.msi.com for more information on compatible memory.

Expansion Slot

1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots

Onboard Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

Maximum shared memory is 1GB

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN
1x Realtek® 8111H Gigabit LAN controller
Storage
Intel® B460 Chipset

6x SATA 6Gb/s ports
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® B460 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B460 Chipset

6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

Form Factor

Miro-ATX Form Factor
9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

BIOS Features

1x 128 Mb flash
UEFI AMI BIOS
Multi-language

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

Back panel Connectors

USB 2.0 Type-A ports
LAN port
PS/2 keyboard/ mouse combo port
DVI-D port
HDMI port
USB 3.2 Gen1 5Gbps Type-A ports
USB 3.2 Gen1 5Gbps Type-A ports
Audio jacks

MSI Z490-A PRO back panel ports
Box content
MSI Z490-A PRO box content

1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
