| Ingrandisci immagine |
Prezzo: € 48,77 +IVA
Disponibilità: 0
Processor
Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
See supported processors
Chipset
Intel® H310 Chipset
Memory
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
See supported memory
Slots
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots
Onboard Graphics
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Storage
Intel® H310 Chipset
4 x SATA 6Gb/s ports
USB
Intel® H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
Audio
Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x RTL8111H Gigabit LAN controller
Internal connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
2 x Front panel connectors
1 x Front panel audio connector
1 x Serial port connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
4 x EZ Debug LED
Back panel ports
PS/2 Combo Port
VGA Port
DVI-D Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
USB 2.0 Port
MSI H310M PRO-VD back panel ports
Dimensions
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
m-ATX Form Factor
Mounting
6 mounting holes
Box content

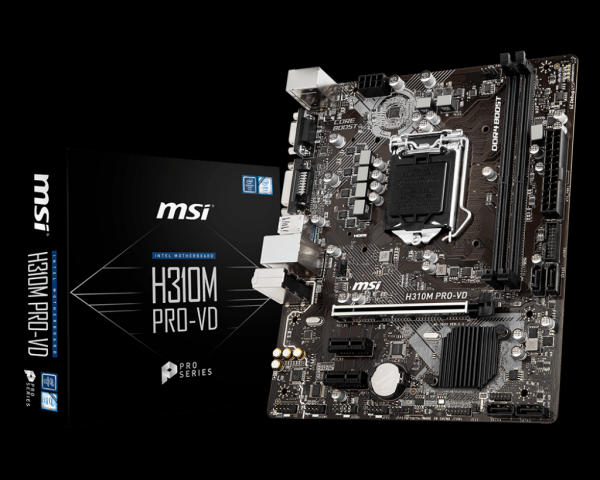

MSI H310M PRO-VD box content
MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
