MSI H510M-A PRO - Scheda prodotto

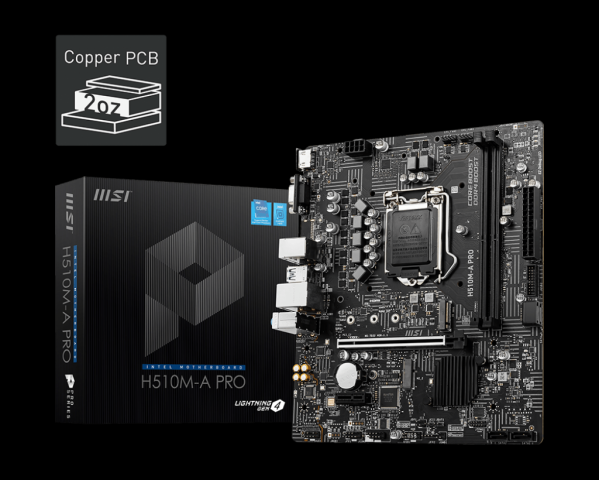

MSI H510M-A PRO

MSI H510M-A PRO
Ingrandisci immagine
Codice prodotto: MSI242

Prezzo: € 69,90 +IVA
Disponibilità: 1

Descrizione prodotto

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Please go to www.intel.com for more compatibility information.

See supported processors
Chipset

Intel® H510 Chipset
Memory

2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot

1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

Onboard Graphics

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Storage

4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From H510 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s1
Supports 2242/ 2260/ 2280 storage devices

SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB
Intel® H510 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)

Audio
Realtek® ALC892/ ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

Back panel ports

HDMI
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0

MSI H510M-A PRO back panel ports
Dimensions

mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Mounting

6 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MSI H510M-A PRO box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
