Prezzo: € 98,90 +IVA
Disponibilità: 0
CPU
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2
Please go to intel.com for compatibility information
Onboard graphics output are disabled when using the F SKU processors.
See supported processors
Chipset
Intel® B460 Chipset
Memory
4x DDR4 memory slots, support up to 128GB 1
Intel® Core™ i7/i9
Support DDR4-2933 Memory (Max.)
Intel® Core™ i5 (Below)
Supports DDR4-2666 Memory (Max.)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
1x PCIe 3.0 x1 slot (from PCH)
Onboard Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Storage
Intel® B460 Chipset
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® B460 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
Intel® B460 Chipset
2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)
5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125B 2.5G LAN Controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 1 5Gbps Type-C connector
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TBT connector 1
1x RTD3 connector1
Thunderbolt card need support RTD3
Back panel ports
PS/2 Combo Port
DisplayPort
USB 3.2 Gen 1 5Gbps(Type-A)
2.5G LAN Port
HD Audio Connectors
USB 2.0 Ports
HDMI Port
USB 3.2 Gen 1 5Gbps(Type-C)
USB 3.2 Gen 1 5Gbps(Type-A)
Optical S/PDIF OUT
MAG B460M MORTAR back panel ports
I/O Controller
NUVOTON NCT6687 Controller Chip
Hardware Monitor
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
Form Factor
mATX Form Factor
9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
1x 128 Mb flash
UEFI AMI BIOS
ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Box content

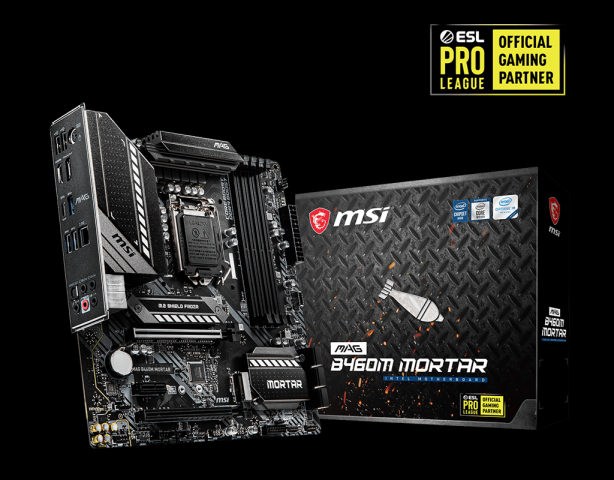

MAG B460M MORTAR content
MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
