MSI MAG B550M Mortar - Scheda prodotto

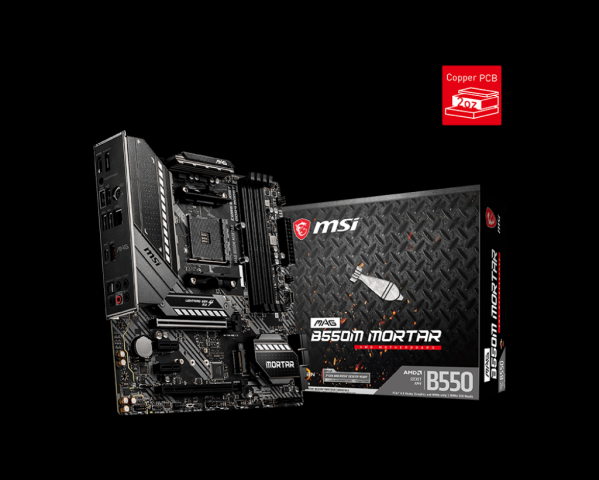

MSI MAG B550M Mortar

MSI MAG B550M Mortar
Ingrandisci immagine
Codice prodotto: MSI255

Prezzo: € 125,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

See supported processors
Chipset

AMD B550 Chipset
Memory

4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot

1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2
2x PCIe 3.0 x1 slots

The supported specification depends on installed processor.
PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.

Multi-GPU

Supports 2-Way AMD CrossFire™ Technology

Onboard Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @60Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 12
Maximum shared memory of 2048 MB

Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Storage

AMD B550 Chipset

6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

AMD B550 Chipset

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio
Realtek® ALC1200/ALC1200P Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Realtek® RTL8125B 2.5Gbps LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

Back panel ports

DisplayPort
PS/2 Combo Port
2.5G LAN Port
USB 3.2 Gen 2 10Gbps (Type-A)
HD Audio Connectors
HDMI Port
Flash BIOS Button
USB 2.0 port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Optical S/PDIF OUT

MAG B550 TOMAHAWK back panel ports
Dimensions

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Mounting

8 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MAG B550M MORTAR box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
