MSI MAG Z390 Tomahawk - Scheda prodotto

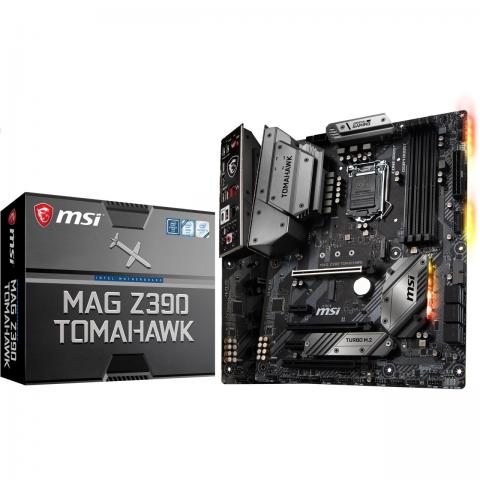

MSI MAG Z390 Tomahawk

MSI MAG Z390 Tomahawk
Ingrandisci immagine
7B18-001R Z390 4xDDR4 4400Mhz(OC) DP HDMI 2xM.2 PCIe 3.0 x4 4xUSB3.1 Gen2
Codice prodotto: MSI189

Prezzo: € 126,58 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors
Chipset

Intel® Z390 Chipset
Memory

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory
Slots

3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
2 x PCIe 3.0 x1 slots
1 x M.2 slot (Key E) for an Intel® CNVi wireless module only

Onboard Graphics

1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z390 Chipset

6x SATA 6Gb/s ports*1
2x M.2 slots (Key M)*1
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready

M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z390 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z390 Chipset

4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1 x Intel® I219-V Gigabit LAN controller
1 x Intel® I211-AT Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector

Back panel ports

PS/2 Combo Port
LAN Port
HD Audio Connectors
USB 2.0 Port
DisplayPort
HDMI Port
USB 3.1 Gen2 Type A
USB 3.1 Gen2 Type A+C
Optical S/PDIF OUT

MSI z390 TOMAHAWK back panel ports
Dimensions

9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor

Mounting

9 mounting holes
Operating System

Support for Windows® 10 64-bit

Box content
MSI z390 TOMAHAWK box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
