Prezzo: € 129,90 +IVA
Disponibilità: 0
Processor
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
Processor socket LGA1200
Please go to intel.com for compatibility information.
See supported processors
Chipset
Intel® Z590 Chipset
Memory
4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
2x PCIe x16 slots
1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (From Z590 chipset)
Support up to PCIe 3.0 x4
2x PCIe 3.0 x1 slots (From Z590 chipset)
Multi-GPU
Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Storage
6x SATA 6Gb/s ports (From Z590 chipset) 1
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 & M2_3 2 slot (From Z590 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready 3
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel® Z590 Chipset
1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Intel® I225-V 2.5Gbps LAN controller
1x Intel® I219-V 1Gbps LAN controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
Back panel ports
DisplayPort
USB 2.0
Gigabit LAN Port
2.5G LAN Port
HD Audio Connectors
HDMI
Flash BIOS Button
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

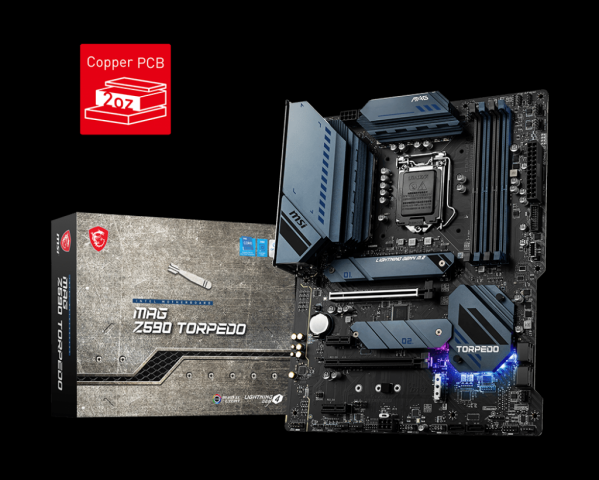

MAG Z590 TORPEDO back panel ports
Dimensions
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Operating System
Support for Windows® 10 64-bit
Box content
MAG Z590 TORPEDO box content
MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
