MSI MPG Z390-Gaming Plus - Scheda prodotto

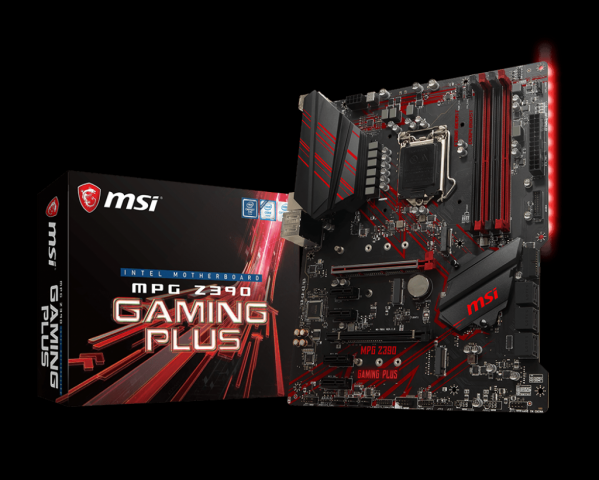

MSI MPG Z390-Gaming Plus

MSI MPG Z390-Gaming Plus
Ingrandisci immagine
7B61-002R Z390 4xDDR4 4400Mhz(OC) HDMI DVI 2xM.2 PCIe 3.0 x4 8xUSB3.1
Codice prodotto: MSI192

Prezzo: € 114,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors
Chipset

Intel® Z390 Chipset
Memory

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory
Slots

2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Onboard Graphics

1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Multi-GPU

Supports 2-Way AMD CrossFire™ Technology

Storage
Intel® Z390 Chipset

6 x SATA 6Gb/s ports1
2 x M.2 slot (Key M)1
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready2

M.2 slots and SATA ports share the bandwidth. Please refer user manual for details.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z390 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB
Intel® Z390 Chipset

2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)1

The CNVI_1 and JUSB2 share the same bandwidth. Please refer user manual for details.

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel® I219-V Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
3x M.2 slots (2 M-Key slots,1 E-Key slot)
2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
2x 4-pin RGB LED connectors
1x Serial Port connector
1x Clear CMOS jumper

Back panel ports

PS/2 Combo Port
LAN
HD Audio Connectors
USB 2.0
DVI-D
HDMI
USB 3.1 Gen2 Type-A + C
USB 3.1 Gen1

MSI MPG Z390 GAMING PLUS back panel ports
Dimensions

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

Mounting

9 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MSI MPG Z390 GAMING PLUS box content


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
