MSI MPG Z490M Gaming Edge WiFi - Scheda prodotto

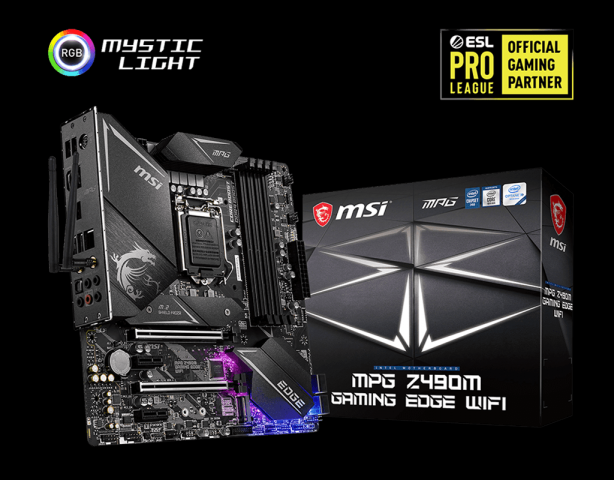

MSI MPG Z490M Gaming Edge WiFi

MSI MPG Z490M Gaming Edge WiFi
Ingrandisci immagine
7C79-006R
Codice prodotto: MSI213

Prezzo: € 184,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

Please go to intel.com for compatibility information.
Onboard graphics output are disabled when using the F SKU processors.

See supported processors
Chipset

Intel® Z490 Chipset
Memory

4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/2666/2933 MHz*
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory

See supported memory
Expansion Slots

2x PCIe 3.0 x16 slots*, support x16/ x0 or x8/ x8 mode
2x PCIe 3.0 x1 slots

Onboard Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Maximum shared memory is 1GB

Multi-GPU

Supports 2-Way NVIDIA® SLI™ Technology
Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z490 Chipset

4x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1
M2_2 slot supports 2242/ 2260 /2280 storage devices2
Intel® Optane™ Memory Ready*** 3

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z490 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset

3x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Audio
Realtek® ALC1220 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Realtek® RTL8125B 2.5Gbps LAN controller

WiFi & Bluetooth
Intel® AX201

lot ∙Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11ac
WiFi 6 pre-certified
Supports Bluetooth® 5.1, FIPS, FISMA

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x Serial port connector
1xTPM module connector
1x Clear CMOS jumper

Back panel ports

PS/2 Combo Port
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
LAN Port
HD Audio Connectors
USB 2.0
HDMI Port
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Optical S/PDIF OUT

MEG Z490M edge wifi
Dimensions

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Mounting

8 mounting holes
Operating System

Support for Windows® 10 64-bit

Box content
MPG Z490M edge wifi

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
