MSI MPG Z690 EDGE WIFI DDR5 - Scheda prodotto

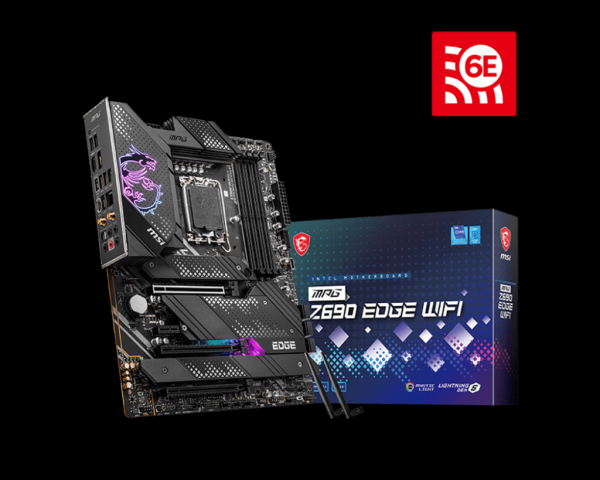

MSI MPG Z690 EDGE WIFI DDR5

MSI MPG Z690 EDGE WIFI DDR5
Ingrandisci immagine
7D31-001R
Codice prodotto: MSI266

Prezzo: € 327,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700

Please go to intel.com for compatibility information.

See supported processors
Chipset

Intel® Z690 Chipset
Memory

4x DDR5 memory slots, support up to 128GB1
Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory

See supported memory
Expansion Slots

3x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 5.0 x16
PCI_E3 & PCI_E4 slots (From Z690 chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From Z690 chipset

Onboard Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports AMD® CrossFire™ Technology
Storage

6x SATA 6Gb/s ports
SATA5~8 (From Z690 Chipset)
SATAA~B (From ASMedia ASM1061)
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia
ASM1061)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2~4 support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel® Core™ processors

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

SATAA & SATAB do not support RAID function.

USB
Intel® Z690 Chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)
2x USB 2.0 Type-A ports on the back panel
2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector

USB Hub-GL850G

4x USB 2.0 ports available through internal connectors

Audio
Realtek® ALC4080 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Intel® I225V 2.5Gbps LAN controller
WiFi & Bluetooth
Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.22, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.

Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
1x Tuning controller connector
1x TBT connector (Supports RTD3)

LED Feature

1x 4-pin RGB LED connector
3x 3-pin RAINBOW LED connectors
1x EZ LED Control switch
4x EZ Debug LED

Back panel ports

DisplayPort
2.5G LAN
Wireless Antenna
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF Out

MEG Z690 edge wifi io
Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes
Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit
Box content
MSI Z690 EDGE WIFI package

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.
