MSI Z390-A PRO - Scheda prodotto

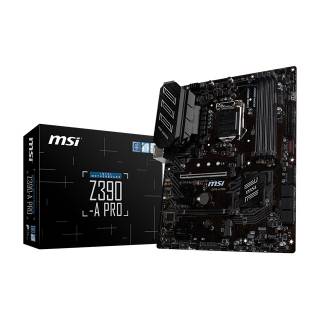

MSI Z390-A PRO

MSI Z390-A PRO
Ingrandisci immagine
7B98-001R Z390 4xDDR4 4400Mhz(OC) DP DVI VGA 1xM.2 PCIe 3.0 x4 4xUSB3.1 Gen2
Codice prodotto: MSI191

Prezzo: € 108,00105,84 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors
Chipset

Intel® Z390 Chipset
Memory

4 x DDR4 memory slots, support up to 64GB1
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz1
Supports Dual Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer to Compatibility for more information on compatible memory

See supported memory
Slots

2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z390 Chipset

6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
Intel® Optane™ Memory Ready2

The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z390 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® Z390 Chipset

2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)1

The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel® I219-V Gigabit LAN controller

Internal connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x M.2 slots (1 M-Key slot,1 E-Key slot)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector

Back panel ports

PS/2 Combo
VGA
USB 3.1 Gen2 Type A+C
LAN
HD Audio Connectors
USB 2.0
DVI-D
Displayport
USB 3.1

MSI Z390-A PRO back panel ports
Dimensions

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

Mounting

9 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MSI Z390-A PRO box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
