MSI Z490-A Pro - Scheda prodotto

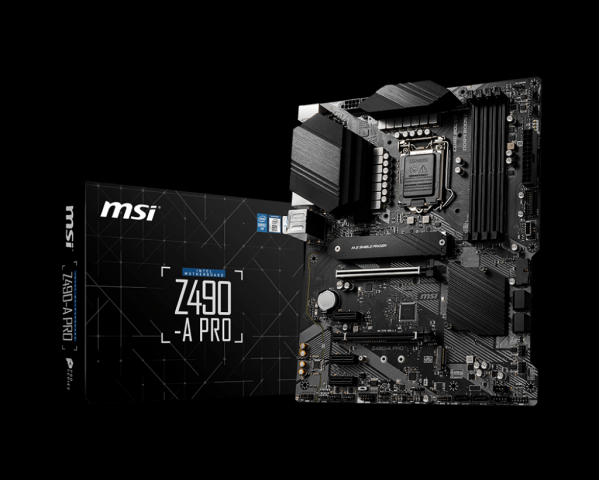

MSI Z490-A Pro

MSI Z490-A Pro
Ingrandisci immagine
Codice prodotto: MSI210

Prezzo: € 133,50 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

Please go to intel.com for compatibility information.
Onboard graphics output are disabled when using the F SKU processors.

See supported processors
Chipset

Intel® Z490 Chipset
Memory

4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/2666/2933 MHz 1
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot

1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
3x PCIe x1 slots (from PCH)

Onboard Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z490 Chipset

6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
Intel® Optane™ Memory Ready 3
Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® Z490 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset

2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Audio
Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8125B-CG 2.5G LAN Controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x serial port connector
1x TPM module connector
1x TBT connector 1

Thunderbolt card need support RTD3

Back panel ports

Keyboard / Mouse
2.5G LAN
Audio Connectors
USB 2.0
HDMI
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A + Type-C
USB 3.2 Gen 1 5Gbps Type-A

MSI Z490-A PRO back panel ports
Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MSI Z490-A PRO box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.


1. Le specifiche possono differire senza alcuna notifica in base al Paese di vendita. Ti preghiamo di controllare le specifiche del prodotto con il tuo rivenditore/distributore di riferimento.
2. Il colore del prodotto potrebbe essere diverso da quello in foto a causa dei colori e le impostazioni del monitor.
