MSI Z590 PRO WiFi - Scheda prodotto

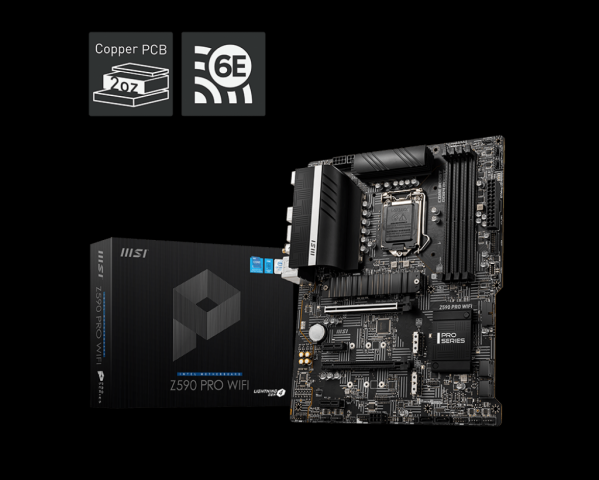

MSI Z590 PRO WiFi

MSI Z590 PRO WiFi
Ingrandisci immagine
Codice prodotto: MSI234

Prezzo: € 195,50 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1200

Please go to intel.com for compatibility information

See supported processors
Chipset

Intel® Z590 Chipset
Memory

4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory

See supported memory
Expansion Slot

2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (from Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)

Onboard Graphics

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage

6x SATA 6Gb/s ports (from Z590 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU) 1
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots (from Z590 chipset)
Support up to PCIe 3.0x4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready 3
Support Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB
Intel® Z590 Chipset

Intel® Z590 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
4x USB 2.0 Type-A ports on the back panel
4x USB 2.0 ports are available through the internal USB 2.0 connectors

Audio
Realtek®ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I225-V 2.5Gbps LAN controller

Intel® Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.22, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
Bluetooth 5.2 will be ready in WIN10 21H1.

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

Back panel ports

Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A

MSI Z590-A PRO back panel ports
Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes
Operating System

Support for Windows® 10 64-bit
Box content
MSI Z590 PRO WiFi box content

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
