Prezzo: € 60,90 +IVA
Disponibilità: 0
SPECIFICATION

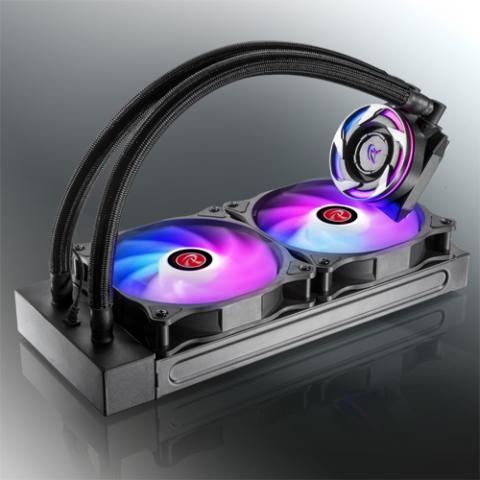

Product Name EOS 240 RBW
Product Number 0R10B00174
Radiator Dimension [W×H×D] 287×120×29 mm
Weight [Block+Pump+Radiator] 790g
Thermal Resistance 0.12 °C/W
Liquid Capacity 150ml ±10%
Fan Q'ty 2 pcs
Tubing Dimension ID 8mm / OD 16mm ; 375mm Length
Material Aluminum
est. TDP 250W
PUMP
Dimension [W×D×H] 120×32×32 mm
Bearing type Ceramic Axis
Q-max 40 L/H
Pressure Head 1.5 Meter ±10%
Noise level 30 dBA [Max.]
Life Expectancy 50,000 hours
Speed 4500±10% R.P.M. at 12VDC
Rated Current 300mA
Voltage Rating 12 V
Power consumption 3.6 W
Power Cable & Length SATA header ; 500mm
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 7V
Speed 800~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 75 CFM [Max.]
Air Pressure 2.3 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28 dBA [Max.]
Connector 5V ADD Male/Female Header, PWM 4pin Header
Rated Current 0.17A±20%
Power consumption 2.1W±20%
LED Rated Current 0.35A [Max.]
LED Power consumption 1.8W [Max.]
COLD PLATE & ARGB LED
Cold Plate Dimension 68×65×40 mm
Cold Plate Material Copper
ARGB Cable/Header 5V ADD Male/Female Header
ARGB Cable Length 500mm
ARGB Voltage Rating DC 5V
APPLICATION
Intel® All Socket LGA 775 / 115x / 1200 / 1366 / 201x / 2066 / 1700 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 CPU
