TP-Link Switch Smart Managed JetStream Gigabit 8 Porte T1500G-8T - Scheda prodotto

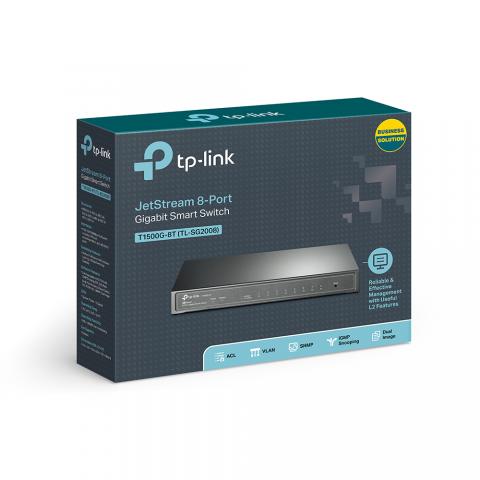

TP-Link Switch Smart Managed JetStream Gigabit 8 Porte T1500G-8T

TP-Link Switch Smart Managed JetStream Gigabit 8 Porte T1500G-8T
Ingrandisci immagine
T1500G-8T (TL-SG2008)
Codice prodotto: WIR320

Prezzo: € 46,90 +IVA
Disponibilità: 0

Descrizione prodotto

Standard e protocolli IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interfaccia 8 10/100/1000Mbps RJ45 Ports
Port8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX)
Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Numero ventole Fanless
Physical security lock No
Alimentazione 100~240VAC, 50/60Hz
External Power Adapter(Output: 12VDC/1A)
Obtain power from PoE source
Consumo energetico Maximum: 5.75W (220V/50Hz)
PD Port (RJ45) Port8 IEEE802.3af/at
Dimensioni ( L x P x A ) 209 * 126 * 26mm
Max Power Consumption 5.75W (220V/50Hz)
Max Heat Dissipation 19.62 BTU/h
Bandwidth/Backplane 16Gbps
Packet Forwarding Rate 11.9Mpps
Tabella ARP 8K
Jumbo frame 9216 Bytes
QoS (Quality of Service) 802.1p CoS/DSCP priority
4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
Funzionalità L2 IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
L2 Multicast • 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- Static Group Config
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
IPv6 Support • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SSH
- IPv6 SSL
- Http/Https
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
ACL (Access Control List) L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Sicurezza Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
Gestione Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
Dual Image
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
Certificazione CE, FCC, RoHS
Contenuto della confezione T1500G-8T
Power Adapter
Installation Guide
Resource CD
Rubber Feet
Requisiti di sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
