Prezzo: € 70,16 +IVA
Disponibilità: 0
P/N W0492

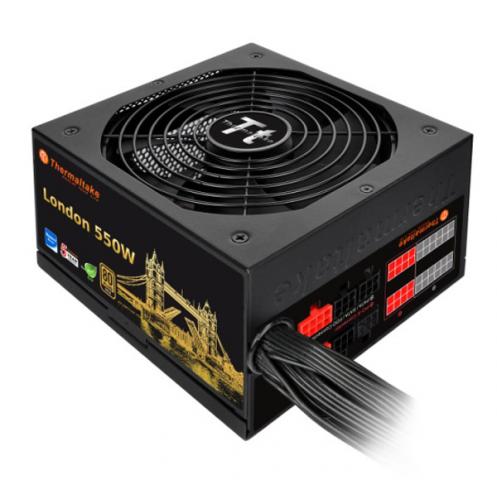

Model TP-550AH3CCG-A
Type Intel ATX 12V V2.3 & EPS 12V standards
Max. Output Capacity 550W
Peak Output Capacity 660W
Color Black
Dimension (H x W x D) 86mm x 150mm x 160mm
PFC （Power Factor Correction） Active PFC
Power Good Signal 100-500 msec
Hold Up Time 12msec (minimum) @ 80% of full load at 115V / 230V input.
Input current 10A
Input Frequency Range 47 Hz - 63 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature +0℃ to +40℃
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -40 ℃ to +70 ℃
Storage Humidity 5% to 95%, non-condensing
Cooling System 140mm double ball-bearing fan, 1500±10%R.P.M.
Efficiency 87-92% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval UL/ TUV/ CE/ FCC/ BSMI/ GOST certification
PCI-E Connector PCI-E 6+2pin x 2
