Prezzo: € 21,90 +IVA
Disponibilità: 0

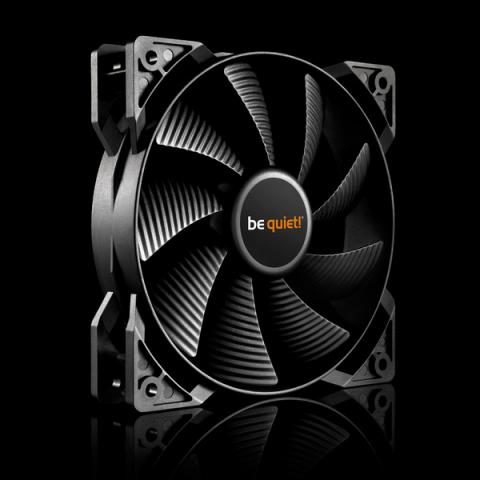

Model Silent Wings 4 140mm PWM high-speed
Dimensions (mm) 140
Color option Black
Lighting -
Fan speed at 100% PWM / 12V (rpm) 1900
Noise level at 100% PWM / 12V (dB(A)) 29.3
Airflow at 100% PWM / 12V (CFM / m3/h) 78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O) 2.36
Infographics
Mechanical specifications
Dimensions (L x W x H), (mm) 140 x 25 x 140
Weight incl. fixed cables (g) 220
Bearing technology FDB
Motor technology 6-pole fan motor
Push pin fixing ✓
Screw fixing ✓
Cables / Connectors
Daisy-chain compatible -
Lighting connector -
Connector 4-pin PWM
Cable length (mm) 500
Cable sleeve ✓
Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h) 78.4 / 133.2
Air Pressure at 100% PWM / 12V (mm H2O) 2.36
Noise level at 100% PWM / 12V (dB(A)) 29.3
Lifespan (h / 25°C) 300,000
Zero RPM mode ✓
Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 13.2
Input current (A) -
Safety current (A) 0.40
Input power (W) 4.8
Rated Current LED (A) -
Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws 4
Push pins 4
hard plastic washer 4
Others Rubber & hard plastic mountings
Safety certification
Approvals CE / UL / UKCA / TÜV
Environmental directives
RoHS ✓
WEEE ✓
Triman ✓
Service
Warranty (Years) 5
International hotline / free of charge ✓ / DE, FR, US
Logistics data and RRP
Article number BL097
EAN code 4260052188897
Dimensions, package (L x W x H), (mm) 206.5 x 31 x 156
Gross weight, package (kg) 0.39
Pieces per packaging unit 32
Dimensions, shipping box (L x W x H), (mm) 463 x 317 x 388
Gross weight, shipping box (kg) 13.68
RRP (€) 24.90
