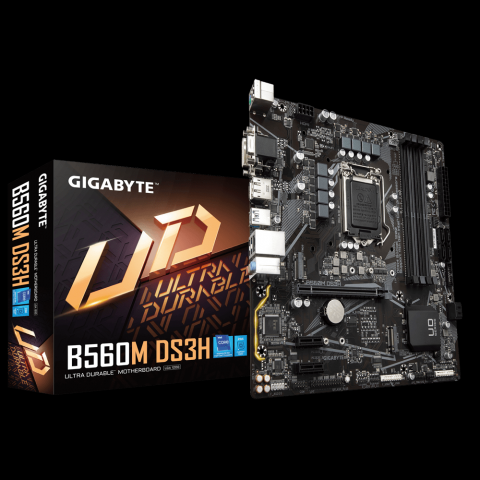

| Ingrandisci immagine |
Prezzo: € 76,90 +IVA
Disponibilità: 0
Processore
LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
La Cache L3 varia da CPU a CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® B560 Express Chipset
Memoria
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Architettura di memoria a doppio canale
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supporta le memorie dotate di Profilo XMP
((Per maggiori informazioni fare riferimento alla Lista di memorie compatibili))
Grafica integrata
Integrated Graphics Processor - Intel® HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
LAN
Realtek® GbE LAN chip (1000/100 Mbit)
Slot di Espansione
1 x Slot PCI Express x16, funzionante a x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Nota)
2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Interfaccia di storage
CPU
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2P_CPU connector only.
USB
Chipset
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub
2 x USB 2.0/1.1 ports on the back panel
Connettori Interni I/O
1 Connettore di Alimentazione ATX a 24-pin
1 Connettore di Alimentazione ATX ad 8-pin
1 Connettore per Ventola della CPU
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 Connettore per Pannello Frontale
1 Connettore per uscite Audio Frontali
1 x USB 3.2 Gen 1 header
2 x Connettori USB 2.0/1.1
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
La funzione TPM è opzionale in base alla regolamentazione dei vari stati
1 Porta seriale
1 x Connettore per porta Parallela
1 x Clear CMOS jumper
1 x Q-Flash Plus button
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Pannello Posteriore I/O
2 x USB 2.0/1.1 ports
1 Connessione per Mouse e Tastiera PS/2
1 x Porta D-Sub
1 x Porta DVI-D
1 x DisplayPort
1 Porta HDMI
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 Porta RJ-45
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
Monitoraggio H/W
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Altre Caratteristiche
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@ BIOS ™
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Supporta il Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Sistema Operativo
Support for Windows 10 64-bit
Caratteristiche Fisiche
Micro ATX Form Factor; 24.4cm x 24.4cm
Nota
Supported by 11th Generation processors only.
