MSI Z690-A Pro WIFI DDR4 - Scheda prodotto

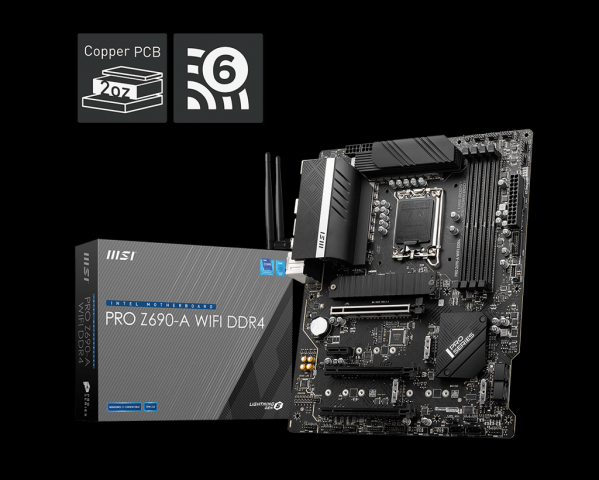

MSI Z690-A Pro WIFI DDR4

MSI Z690-A Pro WIFI DDR4
Ingrandisci immagine
Codice prodotto: MSI245

Prezzo: € 219,90 +IVA
Disponibilità: 0

Descrizione prodotto

Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1700

Please go to intel.com for compatibility information

See supported processors
Chipset

Intel® Z690 Chipset
Memory

4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)1
Max overclocking frequency:
1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory

See supported memory
Expansion Slot

3x PCIe x16 slots
PCI_E1 (from CPU)
Supports up to PCIe 5.0 x16
PCI_E3 & PCI_E4 (from Z690 chipset)
Supports up to PCIe 3.0 x4& 3.0 x1
1x PCIe 3.0 x1 slot (from Z690 chipset)

Onboard Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12

Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports AMD® CrossFire™ Technology

Storage

6x SATA 6Gb/s ports (from Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (from CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z690 chipset)
Support up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from Z690 chipset)
Support up to PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (from Z690 chipset)
Support up to PCIe 4.0x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
Support Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
4x USB 2.0 Type-A ports on the back panel
USB 2.0 Hubs GL850G
4x USB 2.0 ports are available through the internal USB connectors

Audio
Realtek®ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®
Intel® Wi-Fi 6

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2

Internal connectors

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

LED Feature

1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

Back panel ports

Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A

PRO Z690-A WIFI DDR4 back panel ports
Dimensions

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes
Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit
Box content
PRO Z690-A WIFI DDR4

MSI® does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.
