Prezzo: € 65,90 +IVA
Disponibilità: 0
CARATTERISTICHE HARDWARE
Interfaccia Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Tasto Reset
Alimentazione 802.3af PoE and 24 Passive PoE(PoE Adapter Included)
Consumo energetico 10.5W
Dimensioni ( L x P x A ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65
Tipo di montaggio Pole/Wall Mounting (Kits included)
Hardware Watch Dog Yes
CARATTERISTICHE WIRELESS
Standard wireless IEEE 802.11a/b/g/n/ac
Frequenza 2.4GHz, 5GHz
Signal rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Funzionalità wireless Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Sicurezza wireless Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Potenza di trasmissione CE:<20dBm(2.4GHz,EIRP),<23dBm(5GHz,EIRP)
FCC:<30dBm(2.4GHz, EIRP),<30dBm(5GHz, EIRP)
GESTIONE
Omada App Yes
Omada Cloud Controller Yes
Omada Controller Software Yes
Cloud Access Yes
Avvisi e-mail Yes
Management MAC Access Control Yes
Log di sistema locale e remoto Yes
SSH Yes
Gestione web-based Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
ALTRO
Certificazione CE、FCC、RoHS

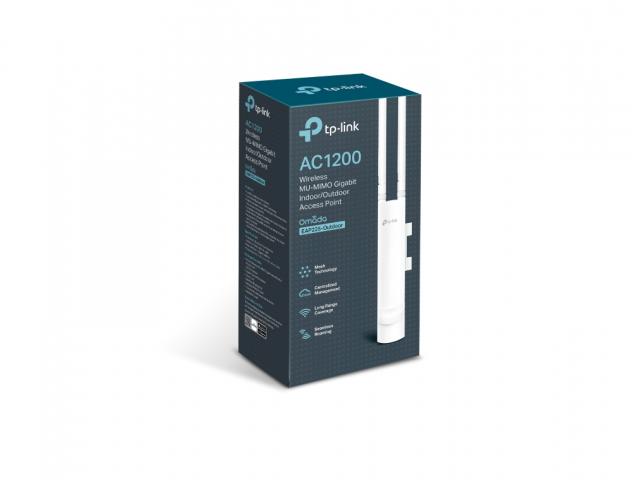

Contenuto della confezione AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Ambiente Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
